You can make your product faster and save money by using fast prototype PCB assembly services. These services can finish in just 24 hours. This helps you sell your electronics before others do. Many companies put design, making, and assembly together. This makes things easier for small businesses. You save money, can make small amounts, and get good quality checks.

• Turnkey solutions make things simple and help you stay on budget.
• Fast work lets you think of new ideas and sell them quickly.

Key Takeaways

• Fast prototype PCB assembly can make your project much faster. You can finish it in just 24 hours. This helps you test and launch products quickly.
• Turnkey solutions make the process easier. They help you save money. You do not need many suppliers.
• Early design checks, like DFM reviews, find mistakes before production. This saves you from expensive problems later.
• If you order small amounts of boards, you can test ideas. You do not have to spend too much money. This is great for startups.
• Good communication with your assembly provider helps avoid mistakes. It also keeps your project moving the right way.

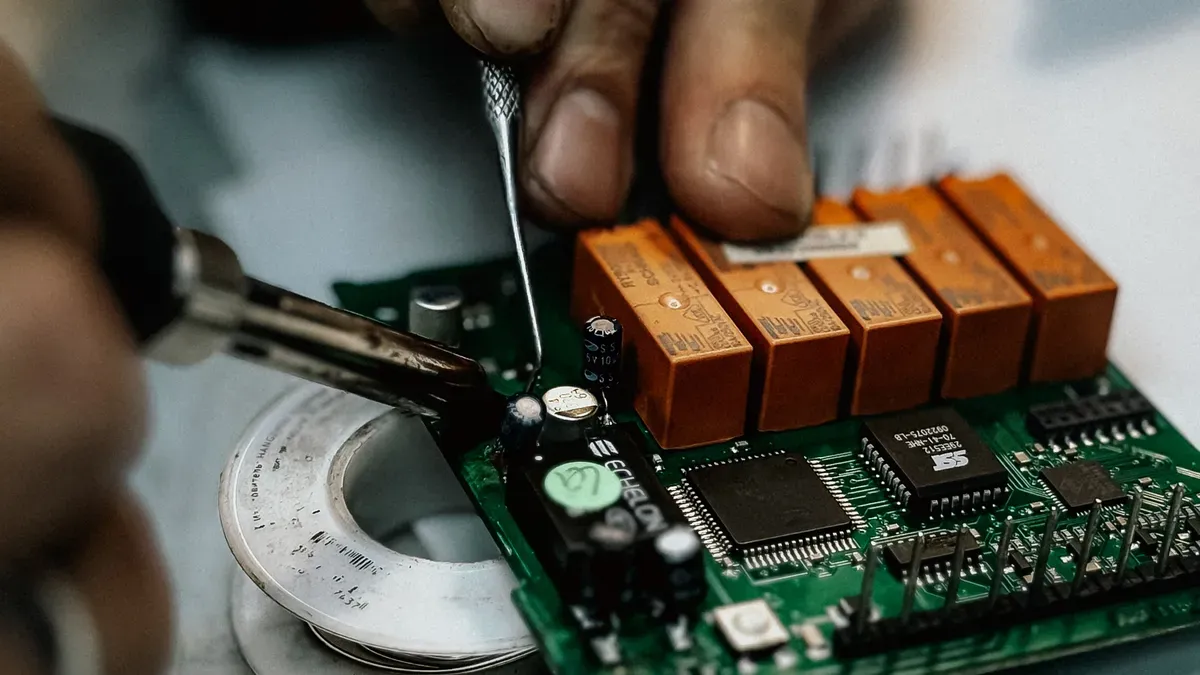

Prototype PCB Assembly Overview

Service Features

Prototype PCB Assembly helps you make your ideas real fast. You use this service to check your design before making lots of boards. This step is key in product development. It lets you see if your design works in real life.

Fast prototype PCB assembly services have many features:

• Full turnkey assembly does everything for you. The provider makes the board, gets the parts, puts it together, and tests it.
• Partial turnkey means you give some parts, and the factory gets the rest.
• Consigned assembly is when you send all the parts, and the provider only puts them together.
• You upload files like the Bill of Materials (BOM), Gerber files, and pick-and-place files to get a fast quote.
• Engineering teams check your files to make sure your design is easy to build.
• Providers get parts from trusted suppliers and can suggest other parts if needed.
• After assembly, the provider checks the boards with tools like AOI and X-ray.
• Finished boards are packed safely and sent to you or your partners.

Tip: Always make your design files and notes clear. This helps the provider build your boards without mistakes.

Time and Cost Benefits

Prototype PCB assembly helps you save time and money in many ways:

1. You find design problems early. This helps you avoid costly mistakes later.
2. You make your product better by testing real boards.
3. You finish your project faster because you can test and change your design quickly.
4. Providers like PCBWay, Seeed Fusion, and PCB Unlimited work fast. Some can finish your boards in just 24 hours.
5. You can order small batches, so you spend less and waste less.
6. The total price and delivery time depend on things like part supply, board complexity, and how many boards you need.

Prototype PCB Assembly gives you an easy way to test, fix, and improve your electronics before making a lot of them.

Save Time

Rapid Turnaround

Electronics move fast. Prototype PCB Assembly services help you keep up. You can get your boards made in just 24 hours. This quick service gives you a big edge. You can test ideas, fix mistakes, and try again fast. You do not need to wait weeks to see if your design works.

• You can test and change your design many times quickly.
• You find problems early, so you do not waste money or time.
• You can launch your product before your competitors.

Note: Using rapid turnaround helps you build trust with customers. You show them you can deliver new products fast.

Electronics companies use fast services to meet high demand. They want to sell their products first. Quick PCB prototypes help you check your design and make changes before spending a lot of money. A good process helps you finish on time and stay ahead.

Streamlined Ordering

Ordering your boards should be easy and quick. Many providers now give instant online quotes. You upload your files and get a price right away. This helps you decide fast and plan your budget. You do not have to wait for emails or phone calls.

You can also get your boards faster by sending complete and clear files. Use standard formats and add all the details. Mark every part and layer. Give simple instructions. This helps the provider start work right away and avoid delays.

• Make sure your design files are ready.
• Include all needed specs.
• Use clear notes and labels.

Tip: Good communication and clear files help you get your boards faster.

DFM Support

DFM means Design for Manufacturability. This is when you design your board so it is easy to make. Many Prototype PCB Assembly services check your files before starting. They look for problems that could slow down work or cause mistakes.

• Early checks catch errors before you spend a lot of money.
• You can fix problems in the design phase, not after making the boards.
• Working with engineers helps you improve your design and avoid costly changes later.

If you find a mistake during design, it is cheap to fix. If you find it after making the boards, it can cost a lot. Each hour you spend checking your design can save you days of fixing problems later. Finding errors early means you do not have to redo your work or wait for new boards.

Tip: Ask your provider for a DFM review before you order. This can save you time and money.

By using rapid turnaround, easy ordering, and DFM support, you can finish your project faster and avoid delays. Prototype PCB Assembly services help you test, improve, and launch your product quickly.

Save Money

Lower Labor Costs

You can lower your labor costs by using Prototype PCB Assembly services. These services handle every step, from making the board to putting on the parts and testing. You do not need to hire extra workers or train your team for special jobs. Turnkey assembly brings all the work into one place. This reduces shipping costs and cuts down on overhead. You also get better prices on parts because providers buy in large amounts.

• You save money by not needing many suppliers.
• You avoid paying for extra shipping.
• You get your boards faster, which helps you sell your product sooner.

Tip: Choose a provider that offers full assembly. This helps you keep your costs low and your process simple.

Fewer Errors

You can save a lot of money by making fewer mistakes. Early checks and tests help you find problems before you make many boards. Providers use tools like Automated Optical Inspection (AOI) to catch defects early. Design for Manufacturability (DFM) reviews also help you avoid errors.

• You find issues early, so you do not waste parts or time.
• You avoid making boards that do not work.
• You spend less money fixing mistakes.

When you fix problems early, you do not need to throw away boards or redo your work. This keeps your project on budget and on schedule.

Note: Ask for a DFM review and early testing. This can help you avoid costly rework.

Flexible Quantities

You do not need to order hundreds of boards at once. Many Prototype PCB Assembly services let you order just a few boards, sometimes as few as two or three. This is great for startups and small businesses. You do not pay for more than you need. You also avoid high setup fees and big minimum orders.

• You can test your idea with a small batch.
• You do not waste money on extra boards.
• You can scale up later without changing your design.

Some providers offer prices as low as $35 for three boards. You can start small and grow when you are ready. This makes it easy to manage your budget and reduce risk.

Tip: Look for services with low minimum order quantities. This helps you save money and avoid waste.

Maximize Savings

Choosing Providers

You can save more money and time if you pick the right prototype PCB assembly provider. Not all companies give you the same value. Some companies only want big orders. Others are better for small batches and quick changes. Use the table below to compare what matters most:

You might want to pick a US-based provider for faster delivery. They often use the best inspection tools and give real-time help. Local shipping means you do not have to wait for customs. This helps you get your boards sooner.

Preparing Files

You can stop delays and extra costs if you get your design files ready. Make sure your files are complete and easy to understand. Use the right formats for Gerber files, BOM, and pick-and-place data. Mark every part and layer. Add notes if you have special instructions.

Tip: Use the silkscreen layer to show which way parts go, where pin-1 is, and which way arrows point. This helps stop mistakes and saves money.

Ask your provider to check your design for manufacturability (DFM). Early feedback lets you fix problems before you start making boards.

Clear Communication

Talking clearly with your provider helps you avoid expensive mistakes. Start by telling them your project goals and any special needs. Stay in touch during the whole process. Answer questions quickly and tell them if your design changes.

• Set up regular feedback with your assembly team.
• Fix problems as soon as you see them.
• Give simple and clear assembly instructions.

When you work closely with your provider, you make fewer mistakes and do not need to redo work. This keeps your project on time and on budget.

Common Mistakes

When you order prototype PCB assembly, you want to avoid common mistakes that can cost you time and money. Knowing these pitfalls helps you keep your project on track and your budget safe.

Lead Time Oversights

Many people forget to check lead times when they order boards. If you do not plan for delays, your project can fall behind. Sometimes, a provider promises a two-week turnaround but takes six weeks instead. This can upset your schedule and your clients. You should always ask about real delivery times and plan for extra time in case you need to make changes. Even the best designs may need more than one round of testing. Build in time for these extra steps so you do not get stuck waiting.

Tip: Always confirm the actual lead time with your provider and add a buffer for unexpected changes.

Ignoring DFM

Design for Manufacturability (DFM) helps you make boards that are easy to build. If you ignore DFM advice, you may face higher costs, lower quality, and more delays. Problems in your design can slow down production or cause boards to fail tests. You might need to redo your work, which wastes both time and money.

• Ignoring DFM can increase production costs.
• It can lower the quality of your boards.
• You may face delays in manufacturing.

When you follow DFM tips, you get fewer design errors, better yields, and more reliable boards. You also reduce the number of times you need to fix or change your design.

Not Comparing

If you do not compare providers, you might miss out on better quality or lower prices. Some companies do not have strong quality checks. This can lead to more defects and higher costs later. Providers with more experience can handle complex projects and deliver better results. Cheaper is not always better. Low prices can mean poor service or more mistakes, which cost you more in the end.

Note: Take time to review different providers. Look at their experience, quality, and customer reviews—not just the price.

By watching out for these mistakes, you can make smarter choices and get the most value from your prototype PCB assembly service.

You can save time and money with Prototype PCB Assembly if you use smart steps. Make your board designs simple and pick standard parts. This makes it easier to put boards together. Start with design-for-manufacturability and use automated inspection to find problems early. Always talk with your assembly partner and share updates. Try quick-turn services to finish your project faster. Look at how you do things now and talk to a trusted provider to get better results.

FAQ

What files do you need for prototype PCB assembly?

You need to send Gerber files, a Bill of Materials (BOM), and pick-and-place files. These files show how to make and assemble your board. Clear files help your provider work faster.

How fast can I get my prototype boards?

Some providers can finish your boards in 24 hours. Most services take 2 to 7 days. Shipping time depends on your location. Ask your provider for the exact timeline.

Can I order just a few boards?

Yes, you can order small batches. Many services let you buy as few as two or three boards. This helps you test your design without spending too much money.

What is DFM and why does it matter?

DFM means Design for Manufacturability. It helps you make boards that are easy to build. Good DFM checks catch mistakes early. You save time and money by fixing problems before production.

How do I choose the right provider?

Look for providers with good reviews, fast service, and clear communication. Ask about their experience with prototypes. Compare prices and support options before you decide.
