SMT meaning, process, features, and applications

Surface-mount technology (SMT meaning) is a new way to attach electronic parts. It connects parts directly to the surface of a printed circuit board (PCB). Unlike older methods, it does not need drilled holes. This makes the assembly process faster and easier. SMT helps create smaller and better-working devices for modern needs. Using SMT reduces device size, improves reliability, and boosts performance. It is very important for making today’s electronics.

Key Takeaways

• Surface-Mount Technology (SMT) helps attach electronic parts directly to circuit boards. This makes devices smaller and work better.
• SMT uses machines to place many parts quickly. This saves time, lowers labor costs, and makes products more reliable.
• Checking and testing are very important in SMT. They help find mistakes early and make sure products are high quality.
• SMT is used in many fields like electronics, cars, medical tools, and space tech. It helps make small and powerful designs.
• SMT has many good points but isn’t great for high-power uses. For those, through-hole technology (THT) is often better.

SMT Meaning and Importance

What is Surface Mount Technology (SMT)?

Surface-mount technology (SMT) is a way to attach electronic parts to circuit boards. Unlike older methods, it doesn’t need holes drilled into the board. Instead, parts stick to the surface using tiny solder pads. This lets manufacturers use very small parts, like 0805 resistors and 01005 capacitors. These small parts help make devices smaller and work better.

Machines place thousands of parts every hour with great accuracy. For example, SMT pads can be as tiny as 0.5 mm. This requires careful planning and design. Using less solder saves materials while keeping parts secure. SMT speeds up production and makes electronics more reliable. It’s a key method for building today’s high-tech devices.

Why is SMT crucial in electronics manufacturing?

SMT is important because it helps make smaller, better devices. As gadgets get smaller and more powerful, SMT supports this change. It allows tiny parts to fit on crowded circuit boards. This is essential for things like smartphones, smartwatches, and other electronics.

Cars also use SMT for advanced systems like electric vehicles (EVs) and driver-assistance features. These systems need small, reliable circuits, which SMT provides. In healthcare, SMT helps create tiny medical devices that are strong and efficient.

By using SMT, companies can make products faster and cheaper. It also improves how well devices work. SMT is used in many industries, from making gadgets to building spacecraft. Whether it’s a smartwatch or a robot, SMT helps create amazing technology.

History and Evolution of Surface Mount Technology

Origins and Early Development of SMT

Surface-mount technology (SMT) started in the late 1950s. Tiny chip components were first made in the United States. These parts could be directly attached to circuit boards. This invention laid the groundwork for SMT. By the 1960s, Philips improved SMT in the Netherlands. Their work showed the world its potential. Around the same time, IBM used SMT in its IBM 360 computer. This proved SMT’s usefulness in electronics.

In 1977, Panasonic made a thin radio called “paper.” It used hybrid microcircuits and showed SMT’s ability to make small devices. By the late 1970s, SMT was common in consumer electronics. This created a market for chip components. In the 1980s, SMT became the main method for making electronics. Since 2001, SMT has grown to handle tiny and complex parts. It now supports high-density assembly for advanced devices.

Key Milestones in the Evolution of SMT

Several milestones show how SMT changed electronics:

• In the 1960s, SMT introduced a new way to attach parts.
• By 1986, SMT parts made up 10% of the market.
• In the late 1990s, SMT became the main method for circuit boards.
• IBM helped lead SMT development as early as 1960.
• SMT allowed smaller parts and packed circuits for modern devices.

These milestones show SMT’s impact on electronics. It helps make smaller, faster, and better devices. SMT keeps improving and drives new technology forward.

The SMT Process Explained

Surface-mount technology (SMT) uses a step-by-step process to attach parts to circuit boards. Each step is important for making sure the final product works well. Let’s look at these steps.

Solder Paste Application

The first step is putting solder paste on the circuit board. This paste helps stick parts to the board and lets electricity flow between them. A stencil and squeegee are used to spread the paste on the right spots. These spots match where the parts will go.

New stencil designs, like metal and step stencils, make this step better. They help with accuracy, especially for boards with tiny parts like 01005 capacitors. But sometimes problems happen, like paste not spreading right. Fixing these problems is key to making good products.

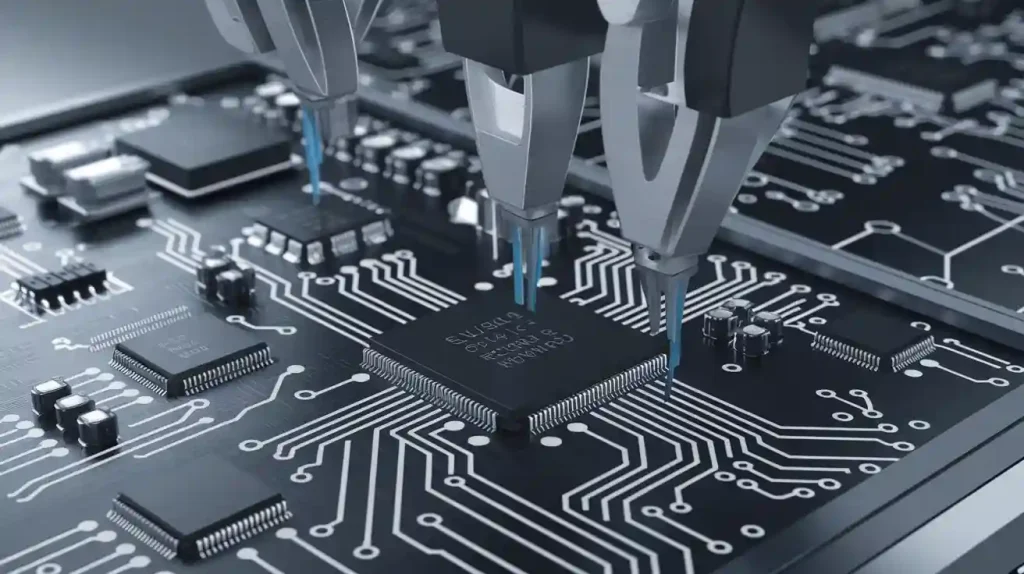

Component Placement

After the paste is added, parts are placed on the board. Machines called pick-and-place machines do this quickly and accurately. They can put thousands of parts on a board every hour. Cameras in the machines help line up the parts perfectly.

Different parts, like resistors, capacitors, and chips, are added during this step. It’s important to place them correctly because mistakes can cause the device to not work well.

Reflow Soldering

Reflow soldering melts the paste to connect the parts to the board. The board goes through a special oven that heats it carefully. This step makes strong connections between the parts and the board.

Quality checks are done during this step to make sure everything is working right. Tools like SPC, Cpk, and PWI help find and fix problems. For example, SPC watches the process closely, while PWI shows if anything is off track.

Reflow soldering is very important because it affects how strong and reliable the board is. By following strict rules, manufacturers make sure the final product is high quality.

Inspection and Quality Control

Inspection and quality control are key to making reliable products. These steps find and fix problems early, saving time and money. They ensure the final PCB assembly meets industry rules and works well.

Types of Inspection in SMT Assembly

1. Automated Optical Inspection (AOI)
   AOI uses cameras to check the board’s surface. It spots misplaced parts, bad soldering, or missing components. This method is quick and very accurate, making it essential for SMT assembly.
2. X-Ray Inspection
   X-rays find hidden problems in complex boards with many layers. They are great for checking solder joints under parts like BGAs, where cameras can’t see.
3. Manual Inspection
   Machines do most inspections, but manual checks are still useful. Skilled workers look for mistakes machines might miss, especially in prototypes or small batches.

Quality Control in the SMT Process

Quality control makes sure every step follows strict rules. Here’s how it helps:

• Solder Paste Inspection (SPI)
  SPI checks the solder paste before parts are added. It ensures the paste is spread evenly and in the right amount, avoiding problems later.
• Functional Testing
  After assembly, this test checks if the PCB assembly works as it should. It mimics real-life use to confirm the board is reliable.
• Statistical Process Control (SPC)
  SPC tracks the whole SMT process using data. It spots trends and fixes issues before they cause big problems.

Benefits of Inspection and Quality Control

• Better Reliability: Finding problems early makes the final PCBA dependable.
• Lower Costs: Fixing issues during production avoids expensive rework or recalls.
• Meeting Standards: Quality control ensures products follow industry rules and certifications.

Tip: Working with trusted providers like PCBasic ensures your SMT assembly gets top-notch inspection and quality checks for perfect results.

By using advanced inspection tools and strong quality control, manufacturers can create excellent products for today’s tech needs.

Features of SMT: Advantages and Disadvantages

Advantages of SMT

Surface-mount technology (SMT) has many benefits for making electronics. It helps create smaller and lighter devices, like smartphones and smartwatches. Parts are placed directly on the PCB, saving space and weight.

SMT speeds up production with machines that place parts quickly. These machines can add thousands of components every hour. This reduces labor costs and uses less solder, cutting waste and saving money.

Devices made with SMT work better because parts have shorter paths. Shorter paths mean less signal problems and more reliable devices. This is great for things like 5G systems and other high-tech uses. SMT also fits many parts on one board without losing quality.

The process is easier because SMT works well with automated systems. Automation ensures good quality and fewer mistakes. This is very important for industries like cars, planes, and healthcare, where accuracy matters a lot.

Disadvantages of SMT

Even with its benefits, SMT has some downsides. It’s not the best for handling high power or voltage. SMT parts are small and less strong than older through-hole parts.

Fixing SMT boards can be hard because the parts are tiny. Repairs need special tools and skills, which can cost more money.

SMT parts can break more easily from shaking or hits. This makes them less useful for tough jobs, like heavy machines or vehicles.

Starting SMT production costs a lot because of the fancy equipment needed. Machines like reflow ovens and inspection tools are expensive. But over time, faster production and less waste can make up for the cost.

Note: While SMT has some challenges, its benefits often make it the best choice for small and efficient designs.

Applications of SMT in Electronics

Surface-mount technology (SMT) is very important in modern electronics. It helps make small, efficient, and powerful devices for many industries. Here are some main uses of SMT.

Consumer Electronics

SMT has changed how consumer electronics are made. It allows smaller, lighter, and portable devices like smartphones and tablets. Parts like fingerprint sensors and cameras are added using SMT for accuracy. Smart TVs and home gadgets also use SMT for better designs and features.

The production of small devices like wearables has grown by 12% yearly in three years. Sales of smart home gadgets and wearables may grow by 10% in 2024. This shows how much SMT is needed for making compact electronics.

Automotive Systems

Cars use SMT for advanced systems like electric vehicles (EVs) and driver-assist features. SMT helps make small parts like sensors and control units. These parts improve how cars work and make them more reliable.

As EVs and self-driving cars become popular, SMT will be used more. By 2028, 70% of car circuit boards will use SMT. This shows how SMT supports new ideas in car technology.

Medical Devices

Medical tools need to be small and work well, so SMT is perfect for them. It helps make tiny health monitors, portable tools, and implants. These devices stay small but still work great because of SMT.

From 2024 to 2028, medical device production will grow by 8% each year. SMT plays a big role in creating new medical tools that help patients.

Tip: Work with trusted SMT providers like PCBasic for top-quality assembly and reliable results.

Aerospace and Defense

Surface Mount Technology (SMT) is very important in aerospace and defense. These fields need small, strong, and high-performing electronics for tough conditions. SMT helps make systems precise and durable for critical tasks.

In aerospace, SMT creates lightweight and compact electronics. Reducing weight is key for planes, satellites, and spacecraft. SMT parts like microprocessors and sensors make systems smaller and better. For example, avionics use SMT to fit many features on tiny boards, working well during flights.

Defense systems also gain a lot from SMT. Modern military tools like radars, communication devices, and drones need advanced electronics. SMT builds strong systems that handle heat, cold, and shaking. Its precision ensures these tools work perfectly, even in tough situations.

SMT also drives new ideas in these industries. For instance, missile guidance and satellite communication use SMT for smaller, efficient designs. By using SMT, you meet strict aerospace and defense needs while ensuring great performance.

Tip: Working with trusted SMT providers like PCBasic ensures top-quality results for aerospace and defense projects.

SMT keeps improving aerospace and defense tech, helping create reliable and innovative systems for these important fields.

SMT vs. Related Technologies

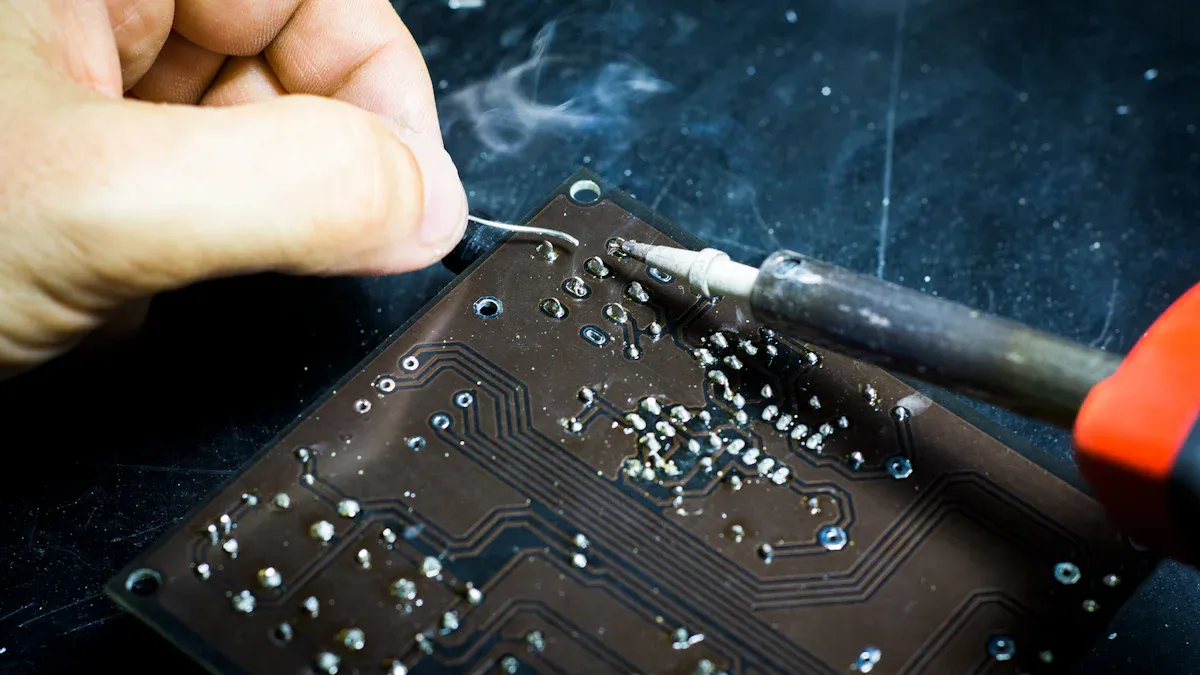

SMT vs. Through-Hole Technology

Surface-mount technology (SMT) and through-hole technology (THT) work differently. SMT places parts on the PCB surface. THT needs holes drilled into the PCB for parts. These differences affect how they are used and their benefits.

SMT is great for small designs and fast production. It fits more parts on smaller boards, saving space and weight. Machines can quickly place many parts, making SMT perfect for making lots of devices. For example, phones and tablets use SMT for compact designs and easy manufacturing.

THT creates stronger connections. Parts go through holes and are soldered on both sides of the PCB. This makes THT good for tough environments, like factories. But THT costs more and fits fewer parts, so it’s less common in modern gadgets.

Choose SMT for speed and small designs. Pick THT for strength and durability.

SMT vs. SMD (Surface-Mounted Device)

SMT and SMD are connected but not the same. SMT is the process of putting parts on the PCB surface. SMD means the parts made for surface mounting.

SMD parts are small and often don’t have long leads. They fit easily on PCBs, helping make lightweight and compact devices. SMT helps this by shrinking PCB size and weight. It also makes devices more reliable by reducing unwanted electrical effects.

Using SMT and SMD together improves electronics. SMT makes assembly faster, while SMD parts make devices better and smaller.

Surface-mount technology (SMT) has changed how electronics are made. It helps create smaller, faster, and better designs. Automated steps make production quicker, cut costs, and improve reliability. Shorter connections boost electrical performance, making SMT vital for modern devices.

How SMT Improves Electronics

• SMT helps cars by fitting more circuits in small spaces.
• It allows smaller designs for advanced consumer electronics.

SMT is used in many fields, like healthcare and aerospace. It works with AI to find errors fast, improving product quality. High-speed machines place parts quickly, meeting the need for tiny electronics.

Tip: Choose trusted providers like PCBasic for precise SMT assembly. This ensures your business stays ahead with reliable and innovative products.

FAQ

What makes SMT different from THT?

SMT attaches parts on the PCB surface, while THT needs holes. SMT works well for small designs and fast production. THT is stronger, so it’s better for tough environments like factories.

How does SMT make production faster?

SMT uses machines to place many parts quickly. This reduces the need for workers and speeds up assembly. Faster production saves money and keeps quality steady, making SMT great for mass production.

Can SMT be used for high-power devices?

SMT is best for low-power gadgets because of its small size. High-power devices often need THT parts for stronger connections and better heat control. SMT is perfect for lightweight and portable electronics.

Why is inspection important in SMT assembly?

Inspection checks that every PCB meets quality rules. Tools like AOI and X-rays find mistakes early, avoiding expensive fixes. Good inspection ensures the final product works well.

Which industries use SMT the most?

SMT is used in electronics, cars, medical tools, aerospace, and defense. It helps make small, efficient, and powerful circuits for modern technology in many fields.
